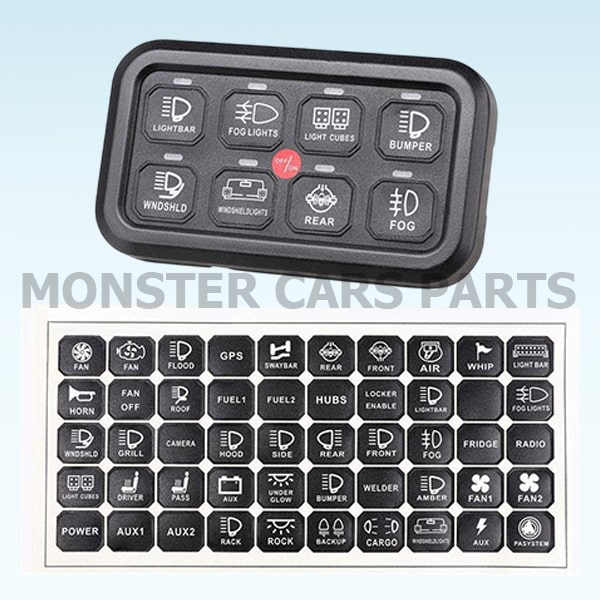

Jeep | LED control panel with 8 switches

Description

Jeep | LED control panel with 8 switches

Features:

Installation Guide:

• The total power goes to 600w at 12V, 1200W at 24V and the maximum current is 60A.
• he maximum output current of grid 1 & 2 is 30A, the maximum output current of ground 3-8 is 20A.

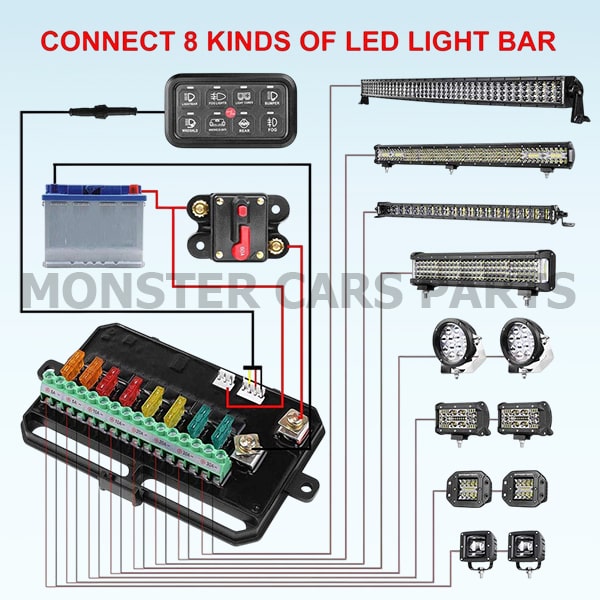

• The recommended connection method is to reduce the current gradually from grid 1 to 8 groud.
• Make sure all the lamps are connected before connecting the power cable.

Instructions for connecting the red, yellow and white control wires:

The red wire connects the power cable of the main switch to ACC. If you want to turn on the LED lamps before starting the car, connect the recommended one because the higher the power, the more battery power will be consumed.
The yellow wire connects the width lamp to the main switch panel.
The white wire is the panel’s brightness control wire. It can control 3 brightness levels with each switch. You can disconnect the white wire to have the larger brightness switch panel if required.

Important Notes:

Professional installation is recommended!

For any questions about installation or price, contact us at +30 698 296 9004 or +30 697 406 7475
